Used 2001 HAAS VF-6/40 | CNC Vertical Machining Centers (VMC)
Have one to sell?
ConditionUsed
1 available

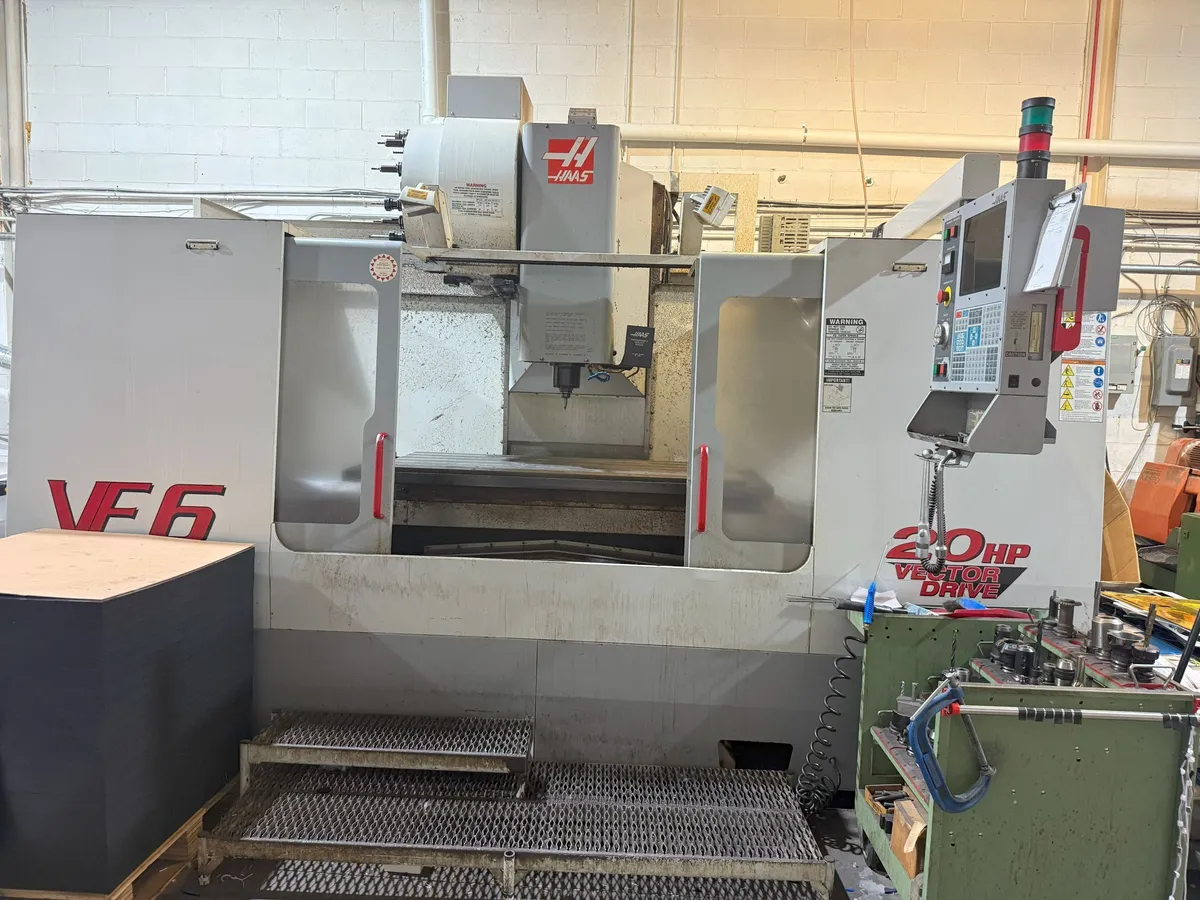

Haas CNC Vertical Machining Center
Model: VF-6/40
Year: 03, 2001
Control: Haas
Location: Mississauga ON
Haas CNC Vertical Machining Center
Model: VF-6/40
Year: 03, 2001
Control: Haas
Location: Mississauga ON
Technical Specifications (Subject to verification)
Table Size 64” X 28”
Max Weight On Table 4,000 lbs
Travels (X) 64"
Travels (Y) 32"
Travels (Z) 30"
Spindle Taper BT-40
Spindle Speed 8,100 RPM
Spindle Motor 20 HP, Vector Drive
Electrics: 208/230V, 3 Phase, 50/60 Hz
Dimensions: 178” x 123” x 124”
Machine Weight 15,000 lbs
Equipped with
• Haas CNC Control
• Side Mount Tool Changer (24+1 Tools)
• Chip Conveyor Augur Style
• Programmable Coolant Nozzle
• Expanded memory to 1 MB
• Remote Jog Hand
• Quick Code Programming system
Haas CNC Vertical Machining Center
Model: VF-6/40
Year: 03, 2001
Control: Haas
Location: Mississauga ON
Imperial
| X | 64" |
| Y | 32" |
| Z | 30" |
| Power | 20 hp |
| RPM | 8,100 RPM |
| # ATC | 20 |
| Taper | BT 40 |
| Table-W | 64" |
| Table-L | 28" |
| # Axis | 3 |
| Control | CNC (Haas) |
| Dimensions | 178” x 123” x 124” |
| Weight | 15000 Lbs. |
Haas CNC Vertical Machining Center
Model: VF-6/40
Year: 03, 2001
Control: Haas
Location: Mississauga ON
Technical Specifications (Subject to verification)
Table Size 64” X 28”
Max Weight On Table 4,000 lbs
Travels (X) 64"
Travels (Y) 32"
Travels (Z) 30"
Spindle Taper BT-40
Spindle Speed 8,100 RPM
Spindle Motor 20 HP, Vector Drive
Electrics: 208/230V, 3 Phase, 50/60 Hz
Dimensions: 178” x 123” x 124”
Machine Weight 15,000 lbs
Equipped with
• Haas CNC Control
• Side Mount Tool Changer (24+1 Tools)
• Chip Conveyor Augur Style
• Programmable Coolant Nozzle
• Expanded memory to 1 MB
• Remote Jog Hand
• Quick Code Programming system
