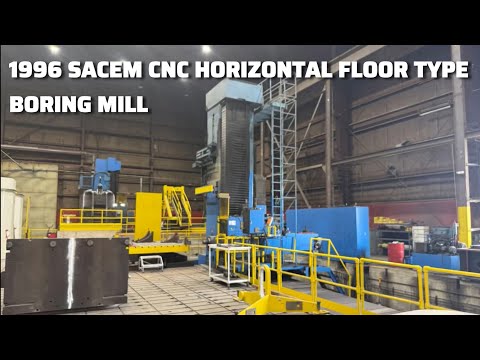

Used 1996 SACEM Racem 602 | Horizontal Floor Type Boring Mills

Sacem CNC Horizontal Floor Type Boring Mill
Model Racem 602
Year 1996
Control Fanuc 15T

Technical Specifications (Subject to verification)
X Column travel 15,000 mm
Y Headstock vertical travel 4,000 mm

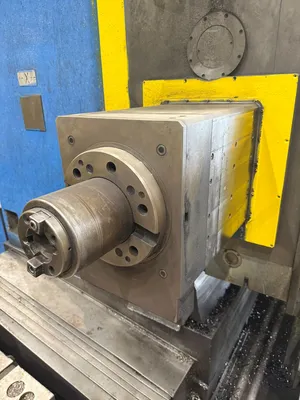

Ram Size 450 x 450 mm,
W Ram travel 1,000 mm
Z Spindle travel 1,000 mm
V Column Longitudinal travel 600 mm

Spindle diameter 160 mm
Spindle Speed 4 - 2.000 rpm
Spindle Taper CAT 50
Spindle motor 60 kW

Continuous Variable Feeds X, Y, Z, W axes 3 – 10,000 mm/min
Rapid Feeds X, Y, Z, W axes 10.000 mm/min

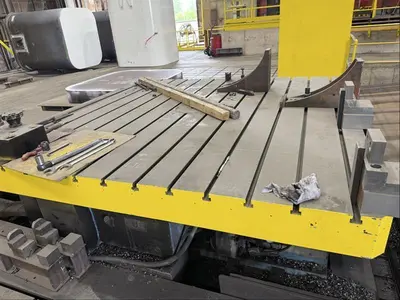

Rotary Table: 3,000 x 3,000 mm, U-axis travel 2,000 mm,
Table load Capacity: 60,000 Kgs.

Floor Plates: 5 no. 8'x20'x12" thick.

Equipped with
• Tool Changer
• Chip Conveyor
• Steel Way Covers
