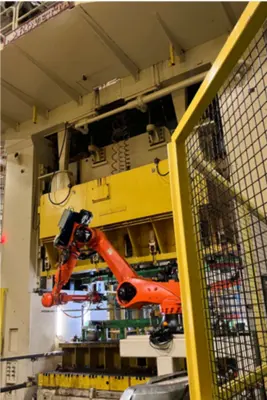

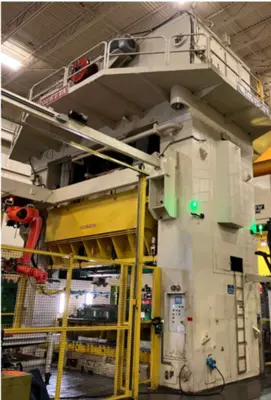

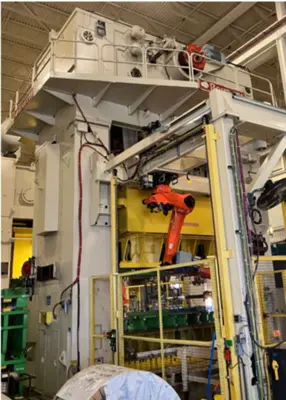

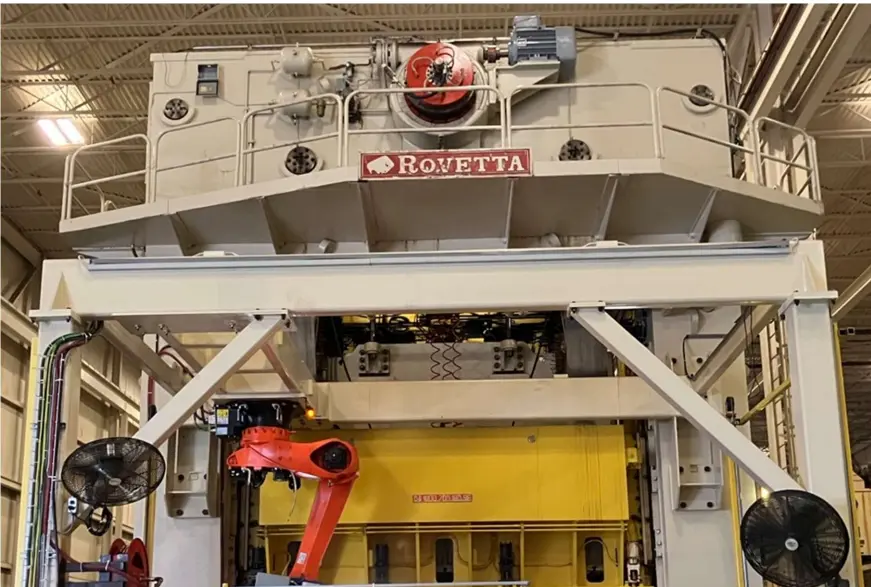

ROVETTA stamping press, model D4-1000-700-180-96, H-Frame type. This used equipment offers robust performance for your industrial stamping needs. Ideal for businesses seeking reliable machinery.
Press Model: D4-1000-700-180-96 SN 2154-2
Capacity / Tonnage: 1000T @ 1/2 in ABDC Inner / 700T @ 1/4 in ABDC Outer
Slide Area (L-R x F-B): 161” x 72” (4100 x 1830 mm) Inner / 180” x 96” (4570 x 2440 mm) Outer
Bolster Area (L-R x F-B): 180” x 96” (4570 x 2440 mm)
Stroke: 40” (1016 mm) Inner / 32” (813 mm) Outer
Adjustment of Slide: 20” (508 mm) Inner and Outer
Shut Height over Bolster (SDAU): 96” (2440 mm) Inner / 87” (2210 mm) Outer
Slide Adjustment: 16” (406 mm)
T-Slots: 72” (1828 mm)
Strokes per minute: 12
Capacity of Main Motor: 110 KW
Number of Cushions: 0
Height above floor: 31.75 ft (9680 mm)
Number and Type of Bolster:
- 2 Rolling Bolsters 20” thickness / height
- Top plate T-slotted (1-inch slots)
- (1) Left to Right and (1) Right to Left movement
- Bolster clamps to fix the bolster to the press base
Features:
Standard press controls
Press control package with inch, single and continuous cycle run modes, emergency stop and
palm-button circuits
Colour touchscreen
(1) palm-button stand
(4) plugs for palm-button stand
(8) outlets for external automation
Automation control at the operator’s panel
Semi-automatic counterbalance control at the operator’s panel programmable by recipe
Lubrication control at the operator’s panel
Tonnage monitor
Die Lights
(2) Ram block
