Used 2012 TOS VARNSDORF WH10CNC | Horizontal Table Type Boring Mills
Have one to sell?
ConditionUsed
1 available

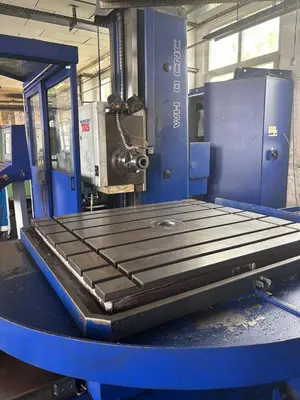

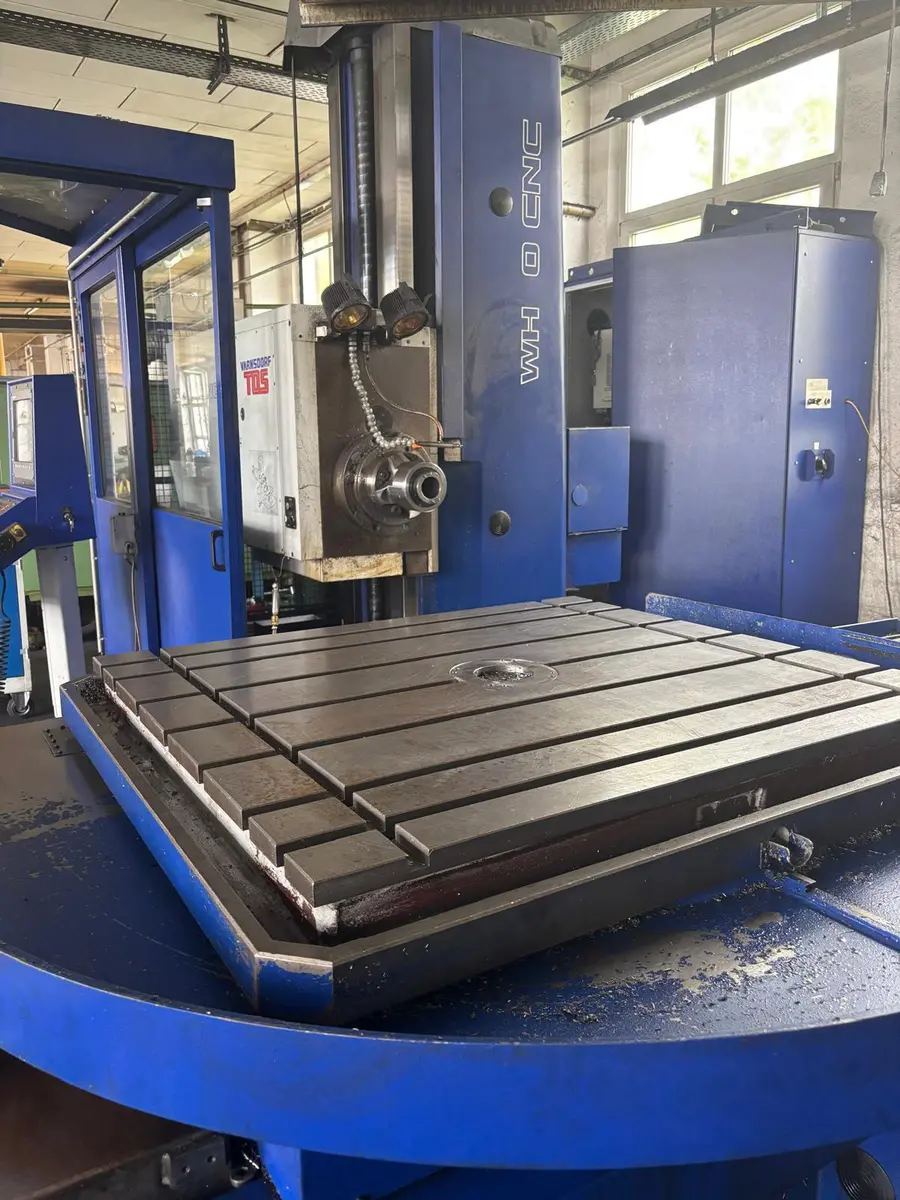

TOS Varnsdorf CNC Table Type Boring Mill
Model: WH10
Year: 2012

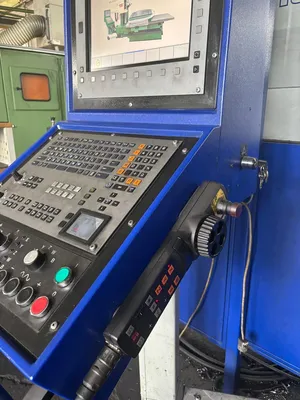

CNC Control: Heidenhain iTNC 530
TOS Varnsdorf CNC Table Type Boring Mill
Model: WH10
Year: 2012
CNC Control: Heidenhain iTNC 530
Technical Specifications: (Subject to verification)

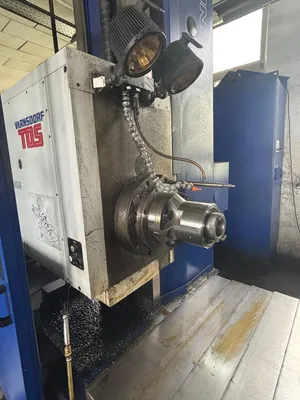

Spindle Dia : 100 mm (3.93”)
Spindle Taper : ISO 50
Max Spindle Speed : 1800 rpm
Main Motor Power : 20kW
X-Axis, Cross Travel :1250 mm (49.2”)
Y-Axis, Vertical Travel :1100 mm (43.3”)
Z-axis, Longitudinal Travel : 940 mm (37”)
W Axis, Spindle Travel : 630 mm (24.8”)
Table size :1000X 1120mm
Axes Controlled : 5 axis, X, Y, Z, W+B-axis
Feed/Rapid Rates : 4-5000mm/min; rapid up to7-10000mm/min
Servo Drive & Feedback: Siemens digital drives; Heidenhain linear scales & rotary encoders
Equipped With:
• Hydraulic clamp stop
• Spindle oriented stop
• Rotary table
• Operator’s cabin
• Set of Tooling
TOS Varnsdorf CNC Table Type Boring Mill
Model: WH10
Year: 2012
CNC Control: Heidenhain iTNC 530
Imperial
| Spindle Size | 3.93" |
| X-Horiz Tvl of Table | 49.21" |
| Y-Vert Tvl of Head | 43.31" |
| Power | 26.8 hp |
| RPM | 1,800 RPM |
| Table-W | 39.37" |
| Table-L | 44.09" |
| Spindle Tvl. | 24.8" |
| Control | CNC (Heidenhain) |
TOS Varnsdorf CNC Table Type Boring Mill
Model: WH10
Year: 2012
CNC Control: Heidenhain iTNC 530
Technical Specifications: (Subject to verification)
Spindle Dia : 100 mm (3.93”)
Spindle Taper : ISO 50
Max Spindle Speed : 1800 rpm
Main Motor Power : 20kW
X-Axis, Cross Travel :1250 mm (49.2”)
Y-Axis, Vertical Travel :1100 mm (43.3”)
Z-axis, Longitudinal Travel : 940 mm (37”)
W Axis, Spindle Travel : 630 mm (24.8”)
Table size :1000X 1120mm
Axes Controlled : 5 axis, X, Y, Z, W+B-axis
Feed/Rapid Rates : 4-5000mm/min; rapid up to7-10000mm/min
Servo Drive & Feedback: Siemens digital drives; Heidenhain linear scales & rotary encoders
Equipped With:
• Hydraulic clamp stop
• Spindle oriented stop
• Rotary table
• Operator’s cabin
• Set of Tooling
