Used 1967 ASQUITH 5RM 30-42 | Horizontal Floor Type Boring Mills

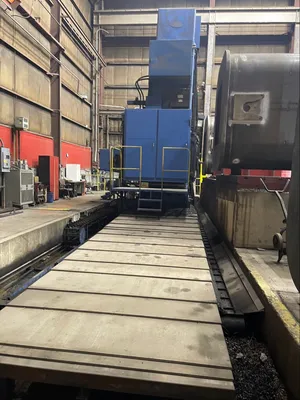

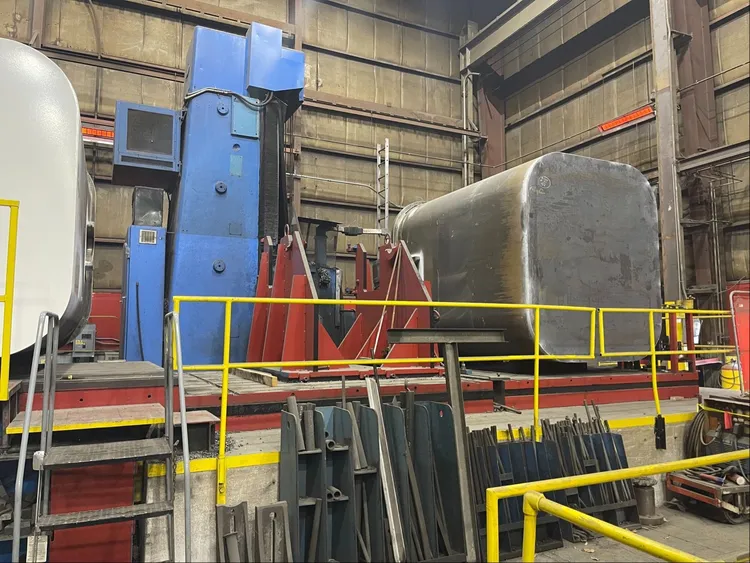

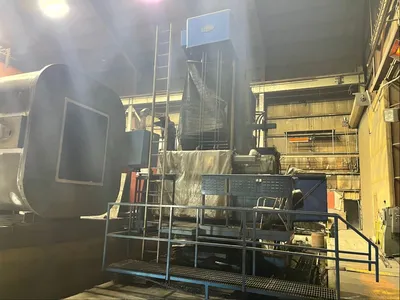

Asquith CNC Floor Type Boring Mill
Model 5RM
Year 1967, retrofitted in late 1990’s.

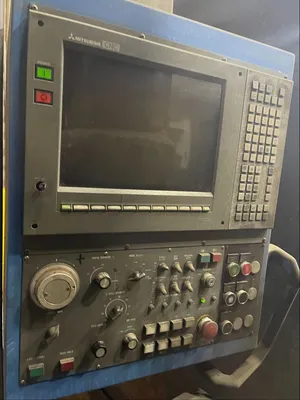

Control: Mitsubishi CNC MELDAS 300, Have all documentation.

Condition: Very Good, Under power in reputed plant in ON Canada

Technical Specification: (Subject to verification)
Spindle Día : Ø 5.125”
Longitudinal X-axis (Column travel) : 15’-0”
Cross Z-axis : 2’-6”
Vertical Y-axis : 10’-0”
Spindle Traverse : 3’-6”
Ram Traverse W-axis : 2’-6”
Total travel combined Z+W : 72”
Ram dimensions : 16”
Vertical Traverse : 10’-0”
Horizontal Traverse : 15’-0”
Spindle Taper : #50, comes with Sandvik Capto Tooling system.
Speed Range : 2.5-700 R.P.M
Feed Range : .018-70 INS/MIN

Approx. weight without floor plates : 69.5 Tons

Equipped with
• Comes with lots of Milling heads, Universal, Straight and more.
• Floor Plates: 3no. 10’x10’x12”, T-slots 2”x1” at 12” apart.
• Steel Way covers on Longitudinal Guideways
• Main Spindle Motor is Mitsubishi
• Chip Conveyor
• Coolant
• Tooling
