Rovetta D2-700 - 700 T Stamping Press - Stroke: 27" (Outer) - 38"(Inner) - Bed (Inner): 138" x 91" - Bed (Outer)110" x 66"
Have one to sell?
ConditionUsed
1 available

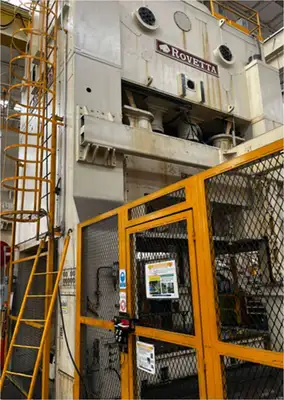

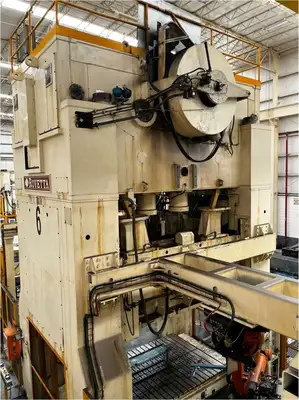

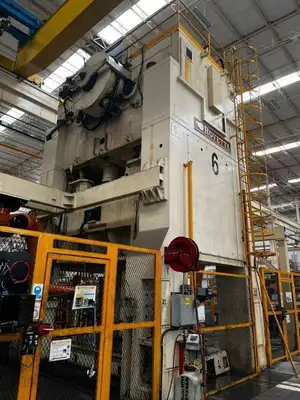

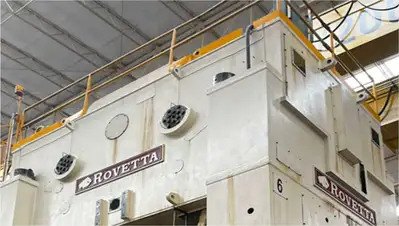

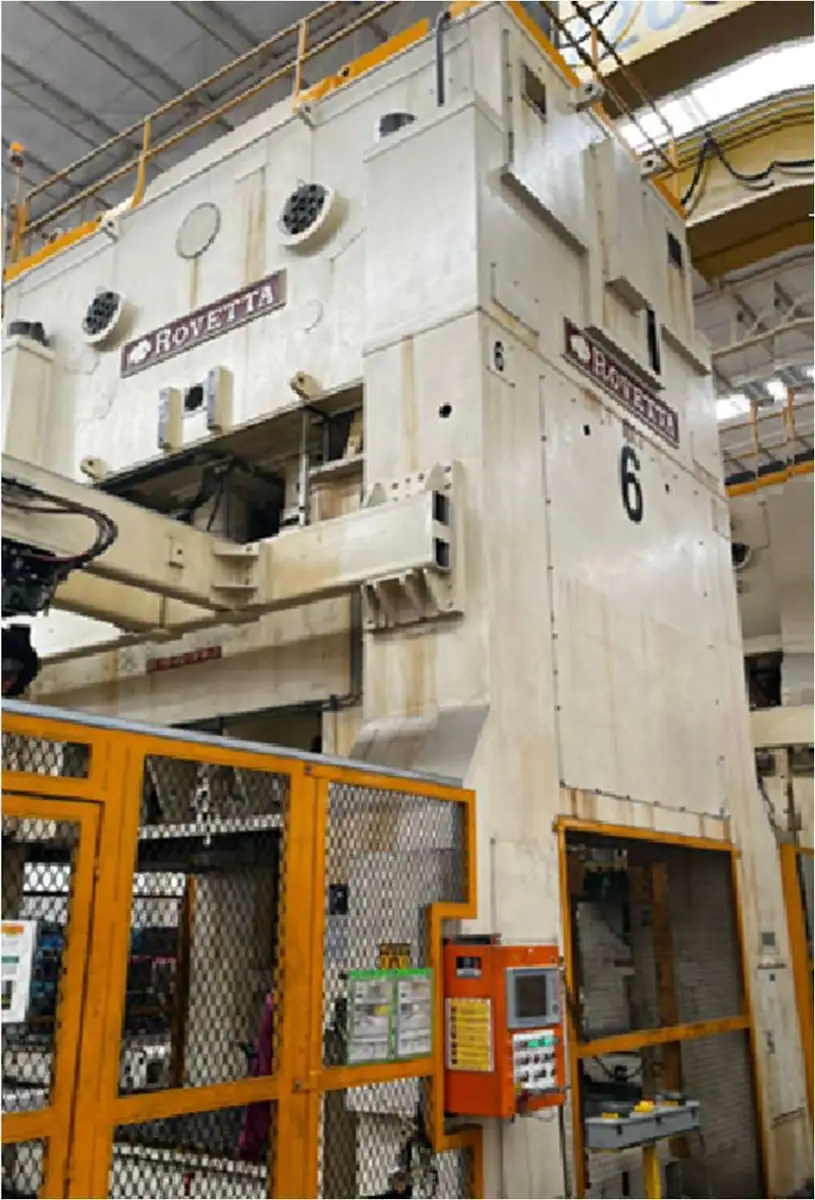

The Rovetta D2-700-450-138-91/LD is a heavy 4-post (straight-side) mechanical press with a double-crank drive. It is configured as a double-action press: one ram (inner slide) delivers 700 tons and a separate blank-holder ram delivers 450 tons. (The model “D2” indicates two slides.) In practice this means the inner slide and the blankholder slide operate independently, typical of a forging-style press. Structurally it is a four-column frame (“straight side”) with two moving slides, classifying it as a large mechanical forging/stamping press with dual-slide action. Ideal for industrial applications. Contact for further details and purchase inquiries.

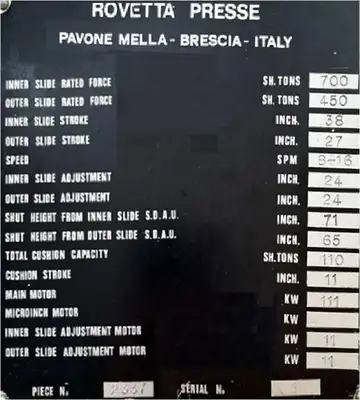

Press Manufacturer: Rovetta
Model: D2-700-450-138-91/LD
Capacity / Tonnage: 700T @ 1/2" ABDC Inner, 450T @ 1/4" ABDC Outer
Bed Area (L-R x F-B): 138” x 91” (3505 x 2311 mm) Inner, 110” x 66” (2794 x 1676 mm) Outer
Stroke: 38” (965 mm) Inner, 27” (685 mm) Outer
Slide Adjustment: 24” (609 mm) Inner and Outer
Shut Height over Bed (SDAU): 91” (2311 mm) Inner, 85” (2159 mm) Outer
Shut Height over Bolster (SDAU): 71” (1803 mm) Inner, 65” (1651 mm) Outer
Slide T-Slots: 72” (1828 mm)
Strokes per Minute (SPM): 8 to 16
Main Motor Capacity: 110 kW
Cushions: 0 (originally included, now removed)
Scrap Ejection: Through bolster
Height Above Floor: 29.45 ft (8976 mm)
Bolster Area (L-R x F-B): 138” x 91” (3505 x 2311 mm)
Number and Type of Bolsters: (2) Bi-directional rolling bolsters, through-window entry with T-track movement
Bolster Thickness/Height: 20”
Top Plate: T-slotted with 1" slots
Bolster Clamps: Included, for securing to press base
Approximate Weight (with 1 Slide & 1 Rolling Bolster): 450,000 kg
From Queretaro, QRO, Mexico
Features:
Standard press controls
Press control package with inch, single and continuous cycle run modes, emergency stop and
palm-button circuits
Colour touchscreen
(1) palm-button stand
(4) plugs for palm-button stand
(8) outlets for external automation
Automation control at the operator’s panel
Semi-automatic counterbalance control at the operator’s panel programmable by recipe
Lubrication control at the operator’s panel
Tonnage monitor
Die Lights
(2) Ram blocks
