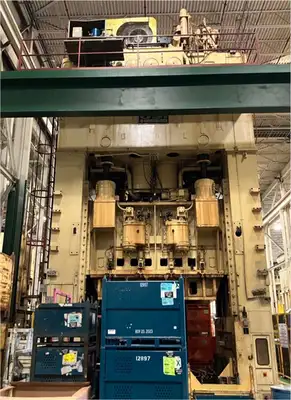

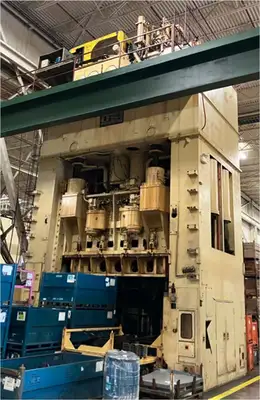

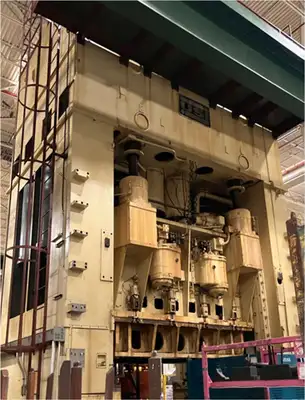

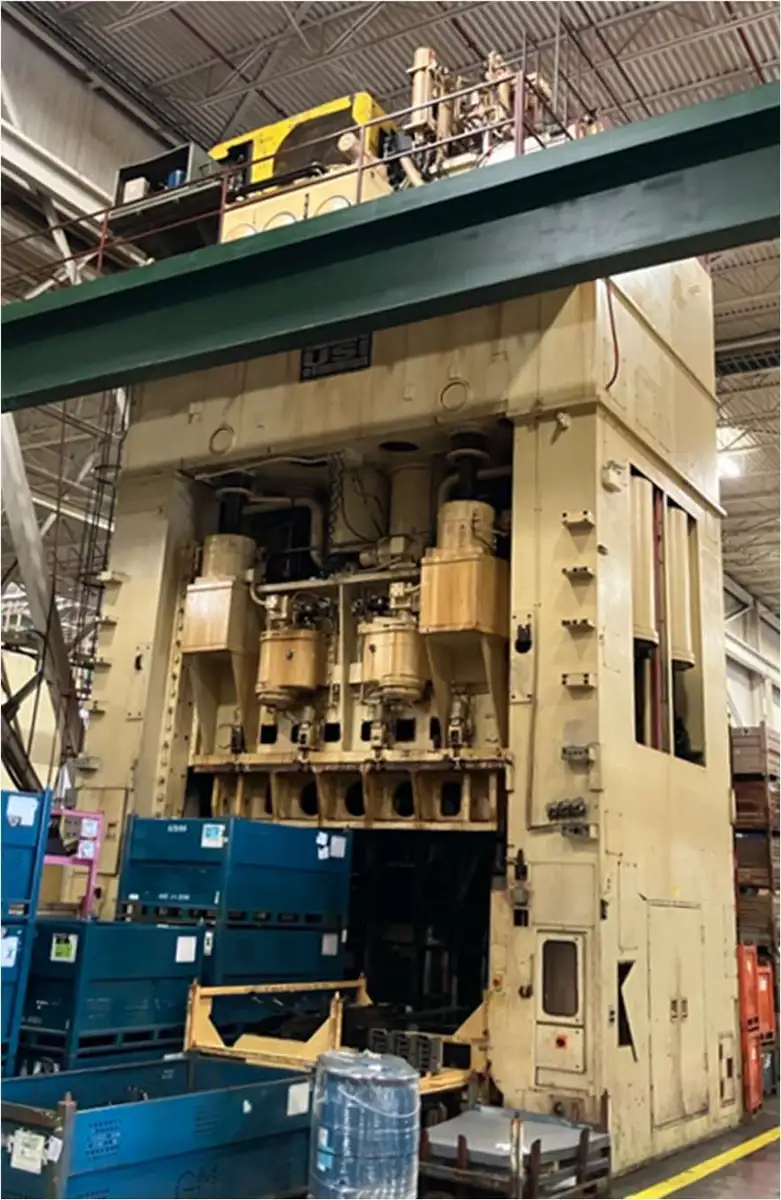

1964 USI Clearing Stamping Press: D4-1600-900-156-102 - 1600T - Stroke: 44” (Inner) - 33” (Outer) - Slide Area (L-R x F-B): 138” x 84” (Inner) - 156” x 102” (Outer)
Have one to sell?
ConditionUsed
1 available
The USI-Clearing D4-1600-900-156-102 likewise appears to be a four-post straight-side press with a double-crank drive. The “D4” prefix indicates a double-action configuration: one main ram (inner slide) with 1,600 tons capacity and a second ram (blankholder slide) with 900 tons. In effect it can also operate as a single-action (combined-slide) 2,500-ton press in some modes. Functionally, it is classified as a high-tonnage mechanical (forging) press: a 4-point frame with independent primary and secondary slides (double-action) on a double-crank drive.
This used equipment is a great addition for precision metalworking applications. Contact us for more details on this classic machinery piece.
Manufacturer: USI-Clearing
Model: D4-1600-900-156-102
Built Year: 1964
Capacity / Tonnage: 1600T @ 1/2" ABDC Inner, 900T @ 1/4" ABDC Outer
Slide Area (L-R x F-B): 138” x 84” (3505 x 2133 mm) Inner, 156” x 102” (3962 x 2591 mm) Outer
Inner Slide: 6” distant T-slotted
Stroke: 44” (1117 mm) Inner, 33” (838 mm) Outer
Slide Adjustment (Motorized): 24” (609 mm) Inner and Outer
Shut Height over Bolster (SDAU): 108” (2743 mm) Inner, 98” (2489 mm) Outer
Strokes per Minute (SPM): 7.5 low speed, 15 high speed (Dual Speed Clutch)
Main Motor Capacity: 300 HP @ 1200 RPM
Number of Cushions: 0
Press Overall Size: 244” x 122” (6197 x 3099 mm), no side openings in columns
Press Overall Height: 48 ft (14,630 mm)
Height Above Floor: 37.5 ft (11,430 mm)
Bolster Area (L-R x F-B): 156” x 102” (3962 x 2591 mm)
Number and Type of Bolster: (1) Uni-Directional Rolling Bolster, Front-Back movement
Bolster Thickness/Height: 19” (482 mm)
Top Plate: 6” distant T-slotted
Features:
Operator’s controls panel at the press column
Run button arms at front and back of the press
Illuminated shut height indicator for inner and outer slides
Digital stroke indicator and control
Die clamps
Die lights
Standard press safety stop-buttons
Safety blocks for inner and outer slides
