1963 Danly 800 T Stamping Press - D-800/500-156-102 - Bed Area: 156” x 102”-Stroke: 44”Inner - 33” Outer
Have one to sell?
ConditionUsed
1 available

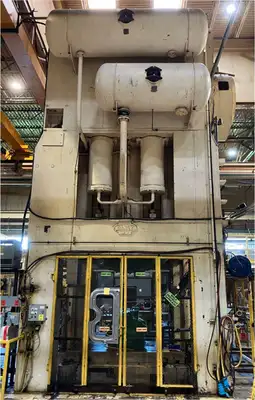

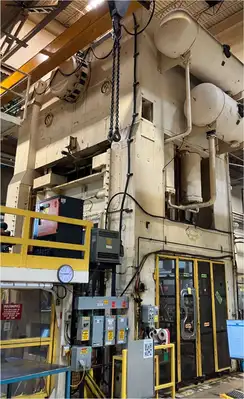

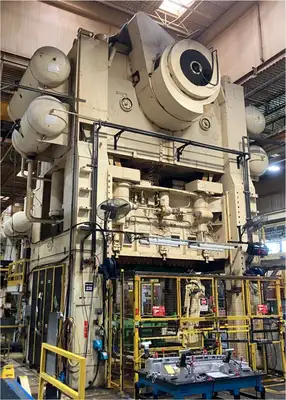

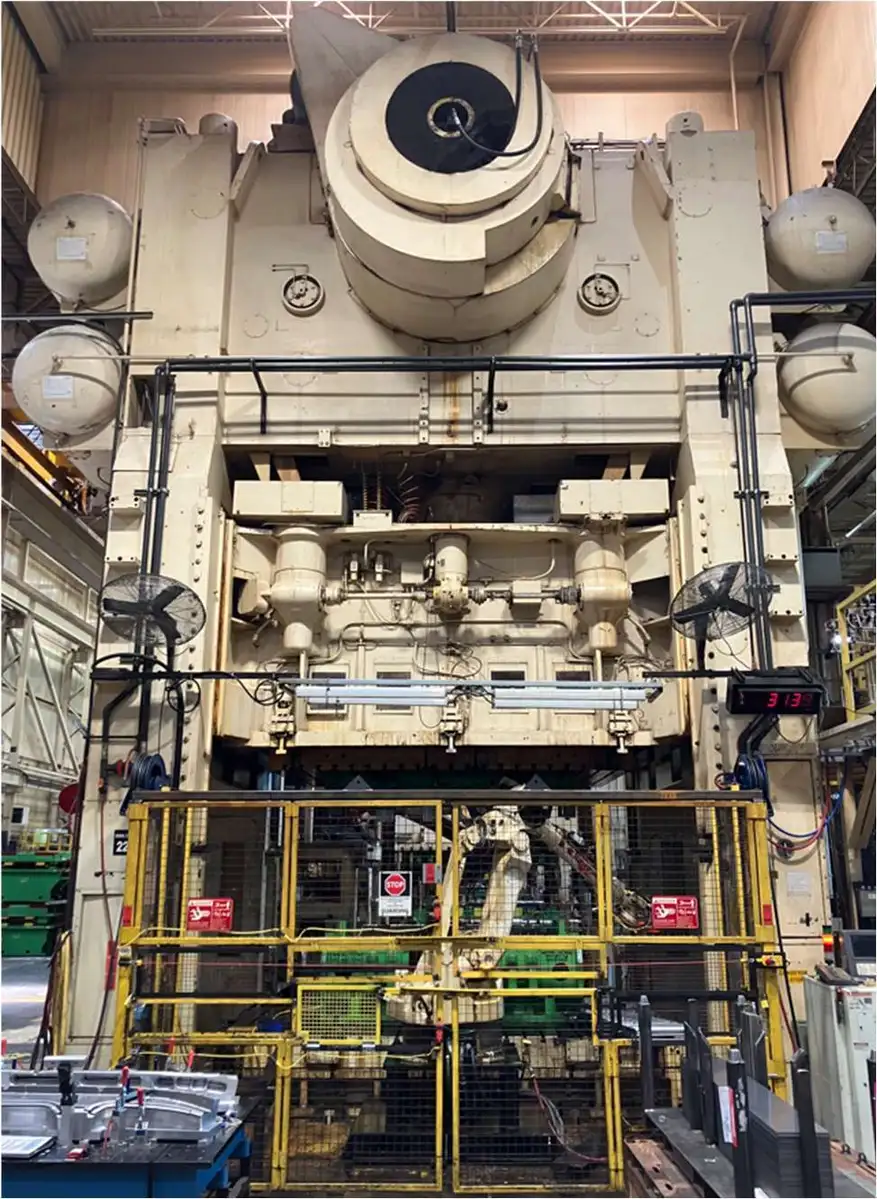

The Danly D4-800-500-156-102 is a straight-side (4-post), double-crank mechanical press. The D4 designation means it has two slides: an 800-ton primary (inner) slide and a 500-ton secondary (blankholder) slide. It is explicitly described as an “800/500 Ton. double action stamping press", confirming the double-action slide configuration. Structurally it is a 4-post frame with dual moving slides, typical of a mechanical forging/stamping press. In summary, it is a 4-column straight-side double-action press (dual-slide) used for heavy stamping or forging.
Well-crafted for precision tasks. Ideal for those seeking reliable equipment with a rich history in manufacturing. Please inquire for further details.

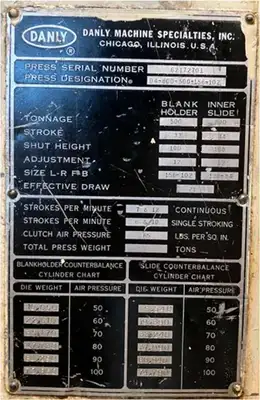

Manufacturer: Danly
Model: D4-800-500-156-102
Built Year: 1963
Capacity / Tonnage: 800T @ 1/2" ABDC Inner, 500T @ 1/4" ABDC Outer
Slide Area (L-R x F-B): 138” x 84” (3505 x 2133 mm) Inner, 156” x 102” (3962 x 2590 mm) Outer
Bed Area (L-R x F-B): 156” x 102” (3962 x 2591 mm)
Stroke: 44” (1117 mm) Inner, 33” (838 mm) Outer
Slide Adjustment: 12” (305 mm) Inner and Outer
Shut Height over Bed (SDAU): 108” (2743 mm) Inner, 100” (2540 mm) Outer
Slide T-Slots: 72” (1828 mm)
Strokes per Minute (SPM): 7 and 14
Main Motor Capacity: 125 HP @ 1200 RPM
Number of Cushions: 0
Height Above Floor: 33.10 ft (10,084 mm)
Bolster Area (L-R x F-B): 156” x 102” (3962 x 2591 mm)
Number and Type of Bolsters: (1) Uni-Directional Rolling Bolster, through-the-window movement
Bolster Thickness/Height: 15”
Top Plate: 6” distant T-slotted with 1” slots
Approximate Weight (with 1 Slide & 1 Rolling Bolster): 295,000 kg
Features:
Standard Press controls
Standard Press safety stop-buttons

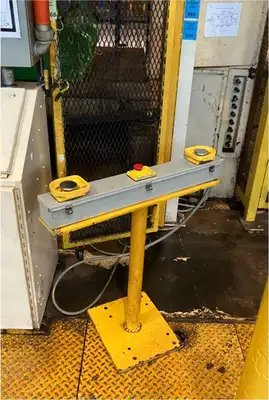

(1) Palm-button stand
Automation control at the operator’s panel
Semi-automatic counterbalance control at the operator’s panel programmable by recipe
Lubrication control at the operator’s panel
Tonnage monitor
Die Lights
