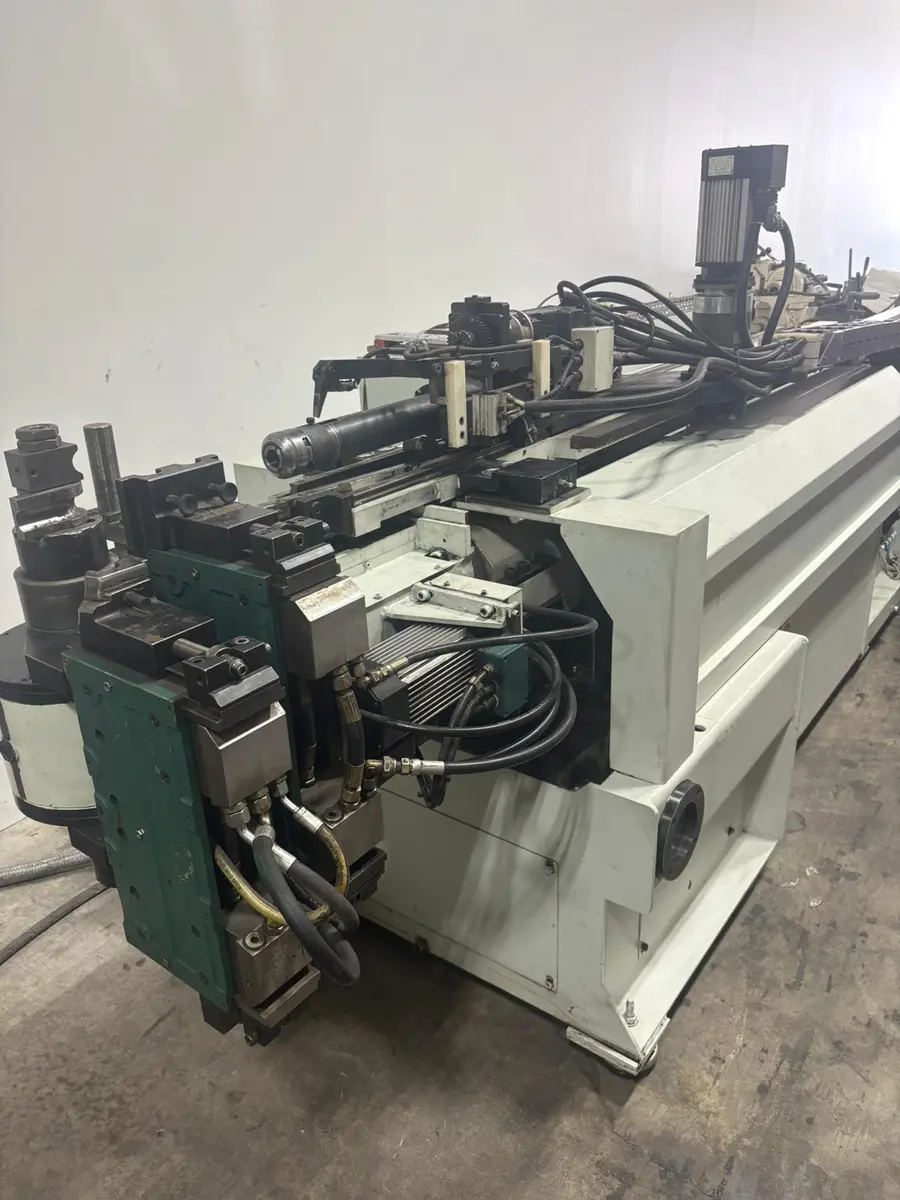

1999 BLM Multipla 3F CNC Tube Bending Machine

BLM CNC Tube Bending Machine
Model MUltpla 3F
Year 1999
Technical Specifications (Subject to verification)
Maximum bending capacity with:
• Round tube R=45 kg/mm² – max 30x1.5 mm
• Round tube R=35 kg/mm² – max 30x2 mm
• Round tube in steel, aluminum, copper – max 35 mm
• Wire – max 18 mm
Internal bending radius
• 20 mm (reducible or extendable on request)
Average bending radius
• Max. 120 mm (extendable on request)
Useful length
• 2.2 m (extendable on request)
Positioning speed – 2000 mm/sec
Air bending speed – 260°/sec
Rotation speed – 900°/sec
Positioning speed – 150 mm/sec
Hydraulic pressure – max. 160 bar
Noise level – 65 dB(A)
Installed power – 5.5 kW
Axis tolerance
• X = ±0.1 mm
• Y = ±0.1°
• Z = ±0.1°
• Q = ±0.1 mm
Average production bends/hour – 1200
Net machine weight – 2250 kg
Net CNC weight – 150 kg
Total weight – 2450 kg
