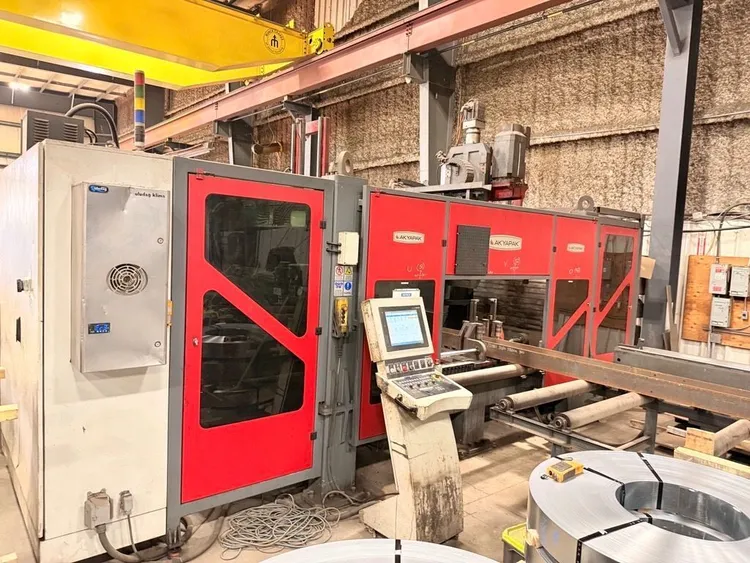

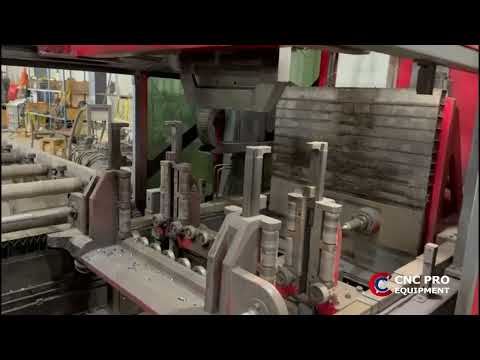

Used 2015 AKYAPAK 3ADM 1200 | Beam / Drill Lines

Number of drill heads : 3
Drill diameter : (Carbide and U-drill) 3/8 – 1-1/2 (Only with U-drill) 1-1/2 – 2
Thread Tapping : M10-M24
Drill Holder : BT-40
Spindle speed : 50-3000
Spindle Power : 30 HP

Material Size
Min. beam size : 8 x 3.15 inch
Max. beam size : 48 x 20 inch
Standard line for Min. length : 6.56 ft
Standard line for Max. length : 40 ft (Total: 41 ft.)

Weight per linear meter : 670 lbs./ft
Electrics: Rated current 160A, Rated power 80 kW, 480V, 3Ph, 60 Hz
Dimensions: Length 6880mm (22.6’), Width 2250mm (7.4’), Height 3450 mm (11.3’) Excluding the conveyor tables.
Machine Weight: 13,000 Kg (28,660 Lbs.)
