Used 1996 MECOF CS-88/G/S | CNC Bed Milling Machine

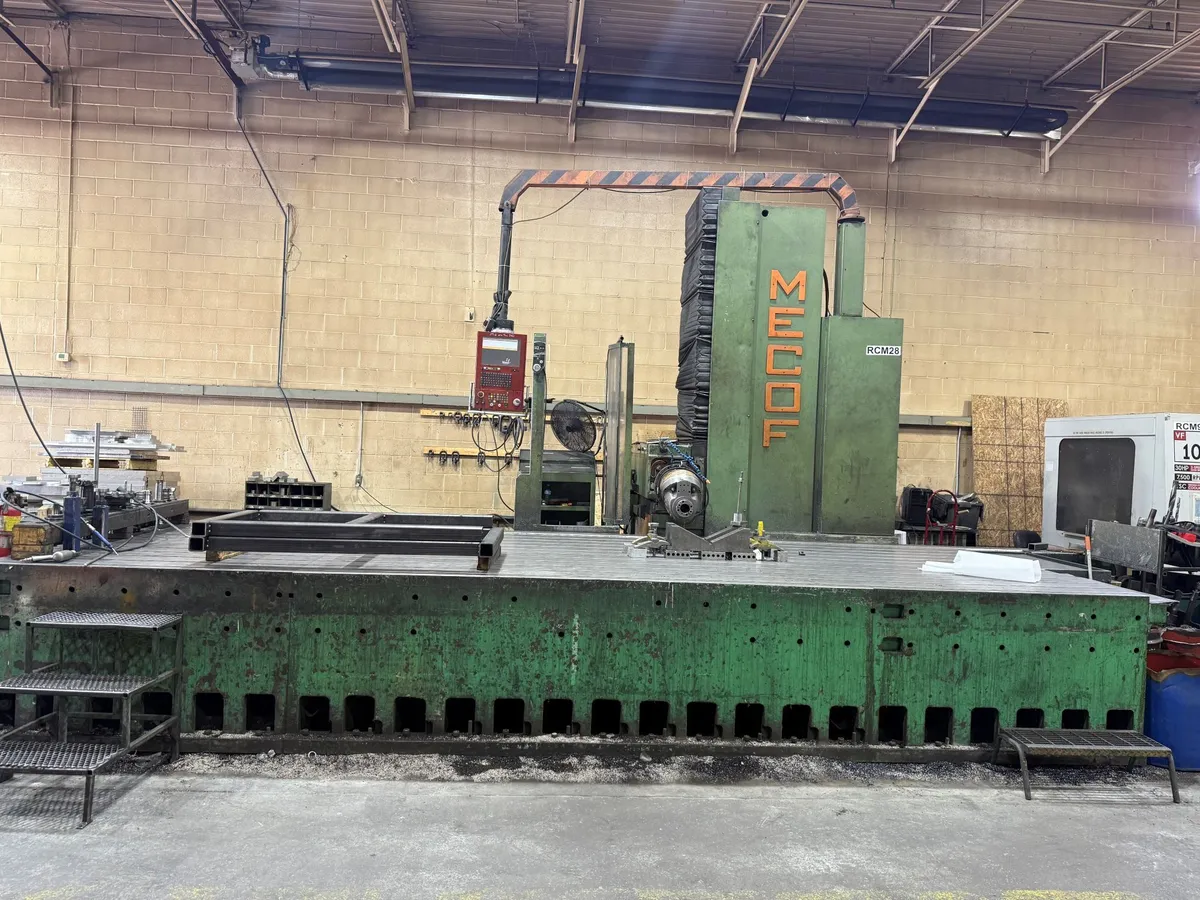

MECOF CNC BED TYPE MILLING MACHINE, ITALY
Model: CS88/G/S
Year: 1996
Control: Fidia (Retrofitted from Fanuc control) Serial NO. CNC0127, , WS32- (FAP11)
Technical Specification: (Subject to verification)
Travels
Column travel, X-axis 12300 mm
Vertical travel, Y-axis 2500mm
Ram travel, Z-axis 1250mm
Spindle
Spindle motor power: 36 kW
No of Tools: 60
Spindle Taper CAT 50
Automatic Milling Head
Transmission Ratio 1 :1
Motor Power 36 kW
Rotation range 2
Tool taper CAT-50
Torque 1500 Nm
Floor Plate mounted on raised cast iron bed
Dimensions 14,000 x 2,000 mm
Width of T-slot 22 mm
Thickness of the floor plate 300 mm
Electrical: 575V, 3PH, 60 Hz.

Equipped with
• Universal Spindle Head, Spindle taper is CAT-50
• Ram movement
• Fidia Control, Retrofitted
• Not pit required, comes with raised platform
• CSA certification
