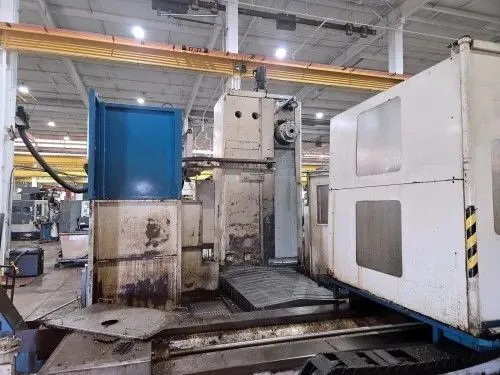

Used 2006 DOOSAN ACE DB130C | Horizontal Table Type Boring Mills

Doosan CNC Horizontal Boring Mill
Model ACE-130
Fanuc 18i-MB CNC Control
Year 2006

Technical Specifications (Subject to verification)

SPINDLE DIAMETER 5.12" (130 mm)

TABLE WEIGHT CAPACITY 33,000 LBS ( 15,000 kgs)

SPINDLE SPEED 2500 RPM

SPINDLE MOTOR 35 HP

TABLE SIZE 70.9" x 63" (1800 x 1600 mm)

X AXIS TRAVEL 118" (3,500 mm)

Y AXIS TRAVEL 78.8" (2,500 mm)

Z AXIS TRAVEL 63" (1,600 mm)

W AXIS TRAVEL 27.6" (700 mm)

PALLET INDEXING (FULL B AXIS) 0.001 Degree

SPINDLE TAPER CAT 50

DISTANCE FROM SPINDLE TO TABLE 0 to 78.7" (0-2,500 mm)

DEGREE OF INDEXING 90 Degrees ( By Rotary Table & Indexing Pin)

TOOL CHANGER POSITIONS 60 Pocket

VOLTAGE 240 V

APPROX. DIMENSIONS FOR PLACEMENT 311″ L x 265″ W x 181″ H

Equipped with
• FANUC 18I-MB CNC CONTROL
• BUILT IN B-AXIS ROTARY TABLE
• CHIP CONVEYOR
• COOLANT SPLASH GUARDS
• TELESCOPIC WAY COVERS
