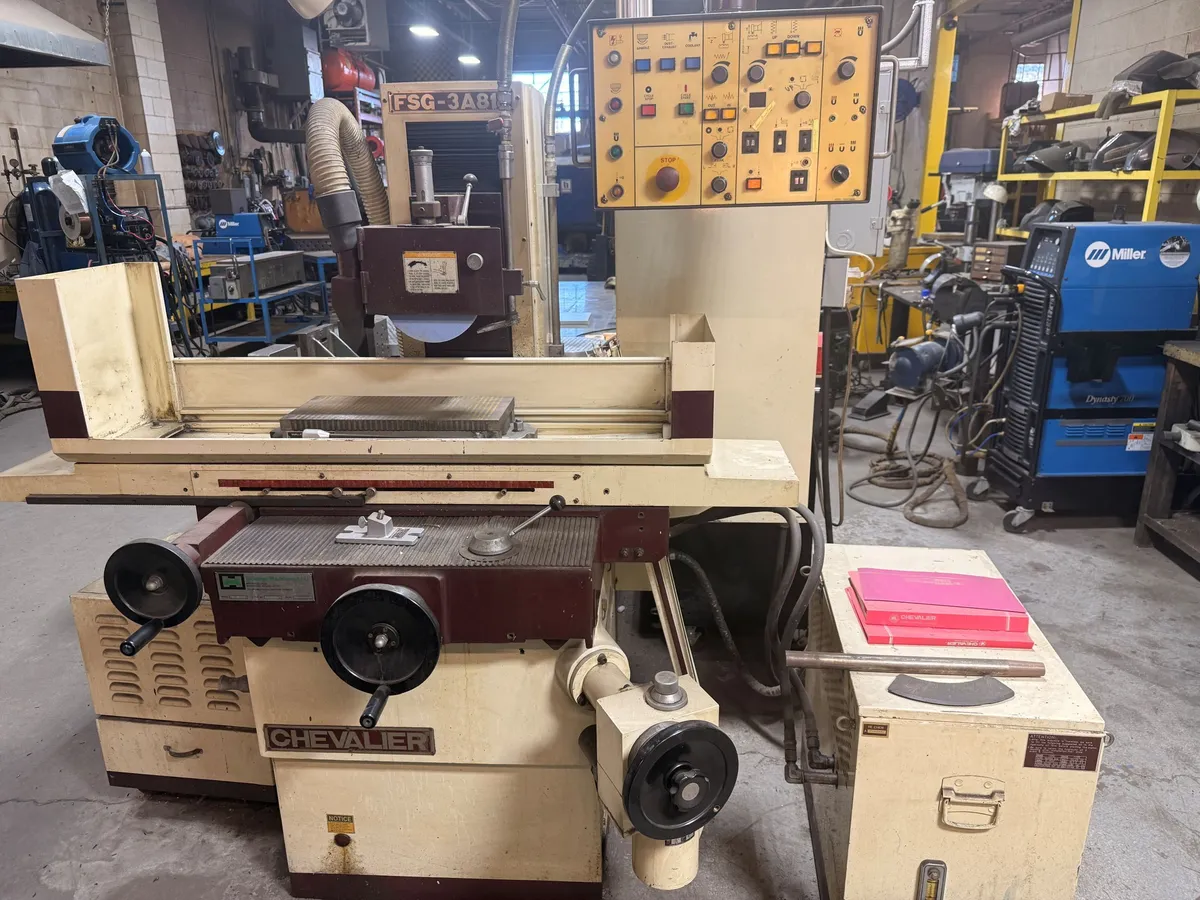

Chevalier FSG-3A818 3-Axis Automatic Surface Grinder

Maximum Grinding Length (Longitudinal): 18" (457 mm)
Maximum Grinding Width (Crosswise): 8" (203 mm)
Maximum Distance from Table Surface to Spindle Centerline: (Normal Column) 18"
Standard Magnetic Chuck Size: 7 7/8" x 17 3/4" (200 x 450 mm)
Longitudinal Movement table - Longitudinal Travel (Hydraulic): 19 3/4" (500 mm)
Longitudinal Movement table - Maximum travel (Manual): 21" (530 mm)
Longitudinal Movement table - Table Speed: 16-82 fpm (5-25 m/min)
Grinding Spindle Drive Speed - 60Hz/3450rpm 50Hz/2850rpm
Grinding Spindle Drive Power Rating: 2 HP (1.5 kW)
Hydraulic Drive: 1 HP
Crossfeed Drive: 0.05 HP
Elevating Drive: 1/4 HP
Standard Grinding Wheel Diameter: 8"(203 mm)
Standard Grinding Wheel Width: 1/2" (12.7mm)
Standard Grinding Wheel Bore: 1 1/4 " (31.75 mm)
Floor Space Dimensions: 90" x 60" x 68 " (2300 x 1500 x 1740 mm)
Weights: 2620 lbs (1190 Kg)
Rated Power Approx: 5 HP
Packing Dimensions: 83" x 65" x 74"
