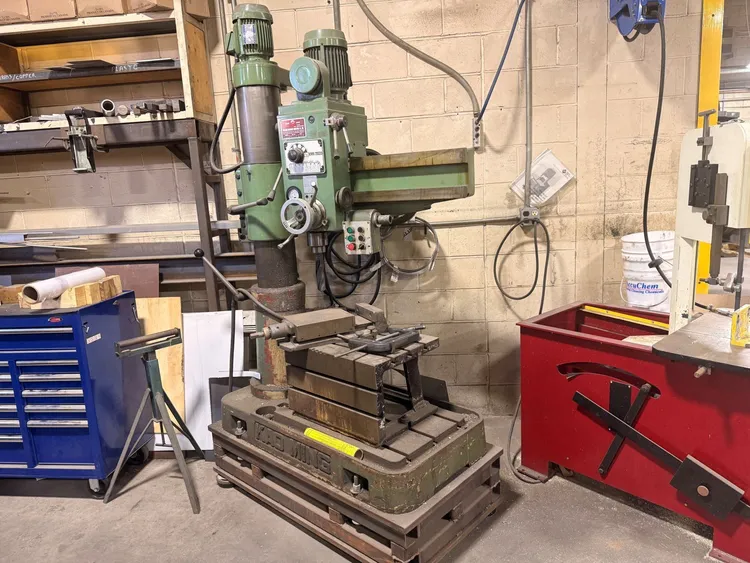

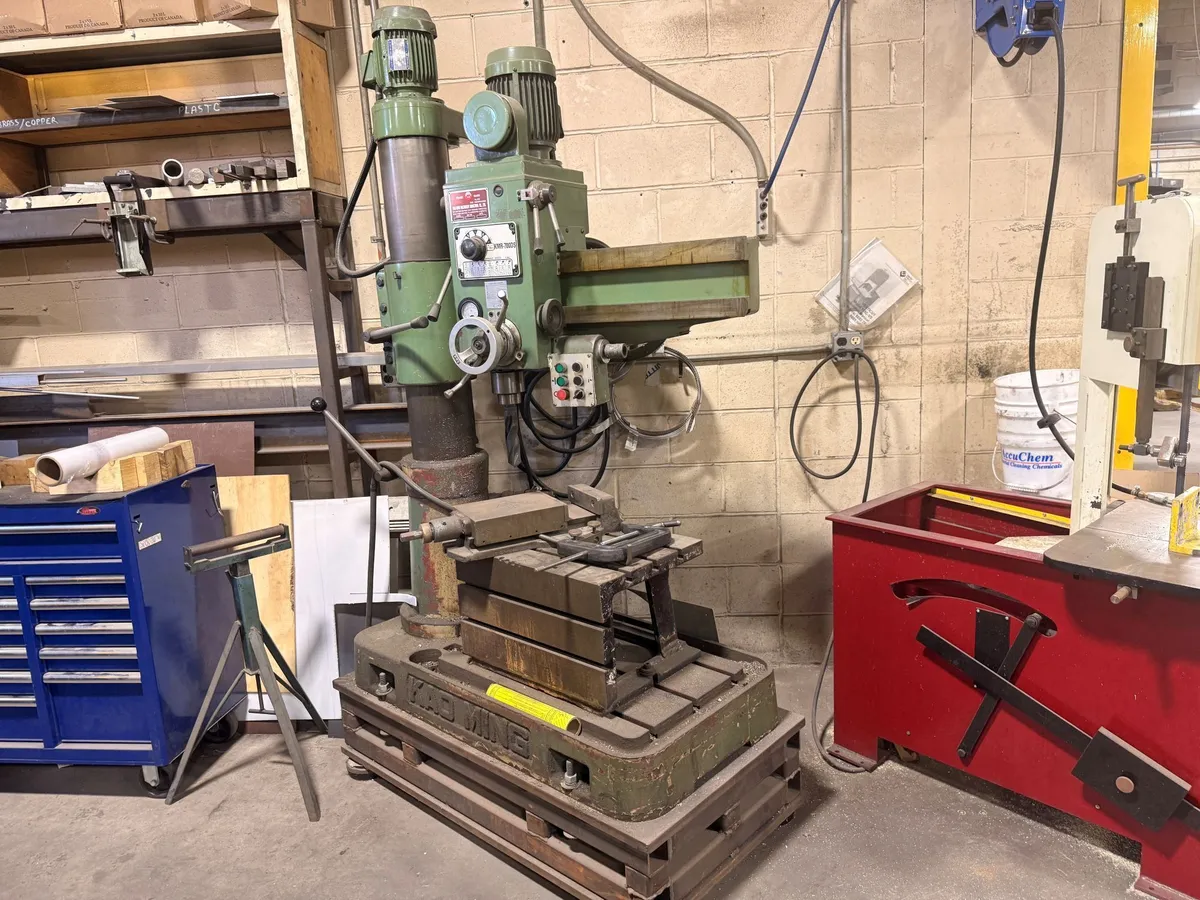

Kao Ming Arm Radial Drill Model: KMR-700DS Year: 1995
Have one to sell?
ConditionUsed
1 available
Voltage: 220/440 V, 3 Phase
Spindle Motor: 2 HP (1.5 kW)
Arm Motor: 1 HP (0.75 kW)
Spindle Speeds: 88–1500 RPM (6-step, hydraulic speed change mechanism)
Drilling Capacity: 38 mm in steel, 50 mm in cast iron
Arm Length: 700 mm (27.5") working length; overall arm 0.8 m / 800 mm
Spindle Taper: MT4 (Morse Taper #4)
Feed Rates: 0.07, 0.13, 0.22 mm/rev (3-step)
Spindle Travel: 210 mm (8.26")
Box Table Size: 405 x 530 x 405 mm
Column Diameter: 200 mm (7.87")
Machine Weight: 1,160 kg (2,557 lbs)
