Used 2015 TOS VARNSDORF WHQ 105 CNC | Horizontal Table Type Boring Mills

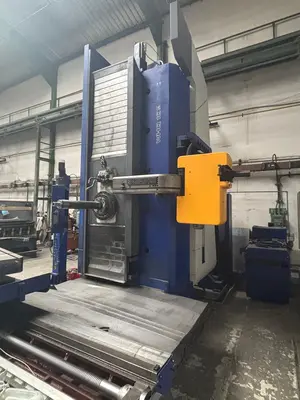

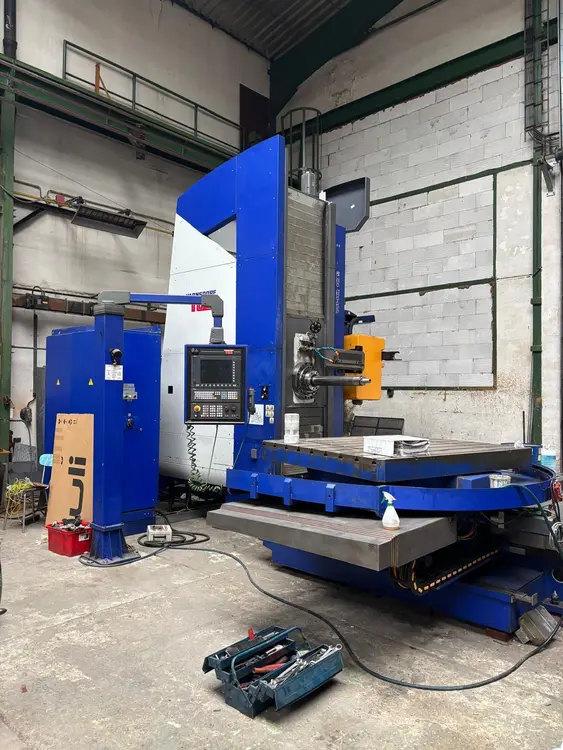

TOS VARNSDORF CNC Horizontal Table Type Boring Mill
Model WHQ-105CNC
Year: 2015

DECSRIPTION:
The WH105 CNC is a numerically controlled horizontal boring mill equipped with the new "SIEMENS"
Sinumerik 840D control. The machine is intended for precision drilling, milling and boring operations.
Equipped with automatic tool changer under denomination WHQ 105 CNC.

TECHNICAL SPECIFICATIONS (From the standard Manual)
(Subject to verification)
Spindle
Diameter 105mm, 4.13”
Taper ISO 50
Drive 28 kW 38.1 hp
Speeds “R” headstock version 10-3300 rpm

Max. spindle torque “R” headstock version Travels
924 Nm 681 ftlb
Table cross travel, X 1800mm, 70.87”
Headstock vertical travel, Y 1600mm 62.99”
Table longitudinal, Z 1250mm 49.21”
Work spindle travel, W 630mm 24.80”
Minimum distance spindle C/L to the table clamping surface 0
Table
Size 1400 x 1600mm, 55.12” x 62.99”
Maximum load 5000 kg 11023 lb.
T slots – dimension/pitch/number 22/160mm/9, 0.87”/6.3”/9
Center hole diameter 100mm 3.94”
Feeds
Working feeds - X, Y, Z, W axes (per min.) 2-5000 Rapid feeds - X, Y, Z axes (per min.) 10000mm, 394”
- W axis (per min.) 8000mm 315”
- B axis (per min.) 2 rpm
Max feed load in - X, Y axes 15 kN 3307 lb.
- Z, W axes 20 kN 4409 lb.
Clamping strength on B axis on diameter 500 mm (19.7”) 16 kN 3527 lb.

General Data
Length 5367mm 222”
Width 4280mm, 169”
Height 3667mm, 145”
Floor space required 4280x6690 mm, 169”x264”
Total machine power input 52 kVA
Pressure air supply requirement - pressure 0.6 MPa 87 p.s.i.
- volume 18 l/sec 0.65cu.ft/sec
Weight 17600 kg, 38800 lb.

AUTOMATIC TOOL CHANGER
Tool storage capacity 40 tools
Maximum tool diameter - fully loaded 125-150 4.92-5.90
- adjacent locations vacant 320mm, 12.6”
Maximum tool length 500mm, 19.68”
Maximum tool weight 25 kg 55 lb.
Maximum tool weight (total) 750 kg 1670 lb.
Magazine pocket pitch

Tool change time (average) Weight of tool changer and magazine (Customer to specify type of tooling)
CHOV-105 Coolant through spindle c/w wo

CHOV-105 Coolant through spindle c/w work area enclosure KVR105R
OC1501LA Oil cooling unit (chiller) Recommended for 1600+RPM
Chip Conveyor
UU950 Clamping angle plate 950 X 500 X 500 mm
UK500 Clamping cube 500 X 500 X 530 mm
Renishaw Measuring Touch Probe and Tool Probe – Infrared Connectivity

FEATURES:
• HARDWARE SET-UP OF THE SIN 840 D AND THE MACHINE CONTROL PANELS
• NCU 572,5 – NUMERIC CENTRAL UNIT
• OP10 - CONTROL PANEL OF THE SYSTEM INCLUDING ITS 10,4” COLOR CRT DISPLAY AND
• BUILT-IN FD 3,5“DRIVE AND USB PORT
• 19” MACHINE CONTROL PANEL
• B-MPI HANDHELD PORTABLE AUXILIARY CONTROL PANEL WITH ELECTRONIC
• HANDWHEEL WITH 10M LONG CABLE
• AUXILIARY CONTROL PANEL FOR ATC (FOR THE MACHINE EQUIPPED WITH ATC)
• FUNCTIONAL SET-UP OF THE SIN 840 D TO BE DELIVERED AS STANDARD
SIMULTANEOUS MOVEMENT OF:
• 4 LINEAR AXES (X, Y, Z, W) IN LINEAR INTERPOLATION
• 2 OUT OF 4 LINEAR AXES IN CIRCULAR INTERPOLATION
• HELICAL INTERPOLATION I E SIMULTANEOUS MOVEMENT OF 2 AXES IN CIRCULAR PLUS
• 3RD AXIS IN LINEAR INTERPOLATION (OF THE 4 LINEAR AXES), OPTIONALLY ANOTHER
• AXIS IN LINEAR INTERPOLATION.
• PROGRAMMABLE INCREMENT:
• IN THE 4 LINEAR AXES (X, Y, Z,W) 0,001MM
• IN THE B ROTARY AXIS (ROTARY TABLE) 0,001°

STANDARD EQUIPMENT:
•
“SIEMENS” 840D control system
• PVK 105-250 spindle support
• 15 pull studs (customer to specify type)
• Spindle taper brush
• Work lights
• Set of service tools
• Operation and maintenance instruction manual
• Coolant system attachment
• Anchoring material KM 105
