Used WHITNEY CS-409 | Turret Punches

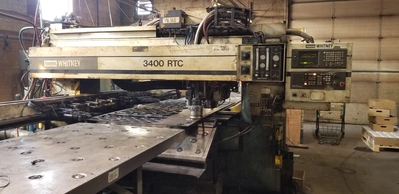

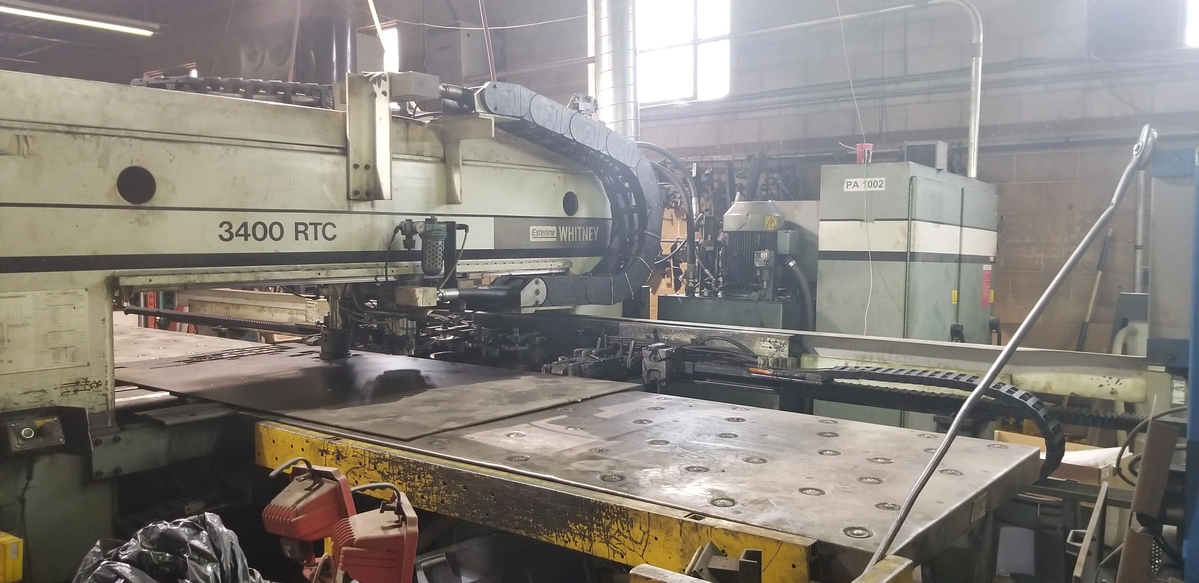

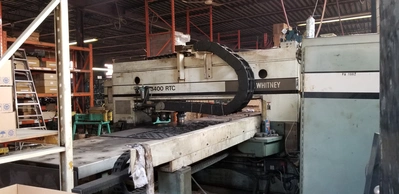

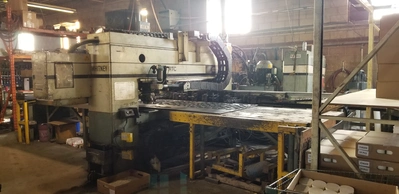

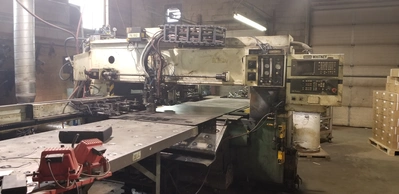

Used Whitney CNC Punch Combo with Hypertherm HT 2000 Plasma Cutting System
CNC Control: GE FANUC SERIES 16-P
Technical Specifications (Subject to verification)
Punching Capacity : 40 Tons
Table size : 50"X96"
Maximum Hole Punch Diameter : 5” Max
Material Thickness (Punch) : ½” (Mild Steel)
Max Material Thickness (Plasma) : ½” (Mild Steel)
X - Axis Travel : 141.44” - 144"
Y - Axis Travel : 61.85” - 48"
Hit Rate @ 1” Centers : 125
Maximum Axis Travel Speed : 1,000 IPM
Maximum Work - Piece Weight : 650 IBS

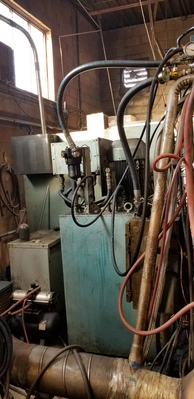

Hydraulic Pump Motor : 30 HP

Equipped with:

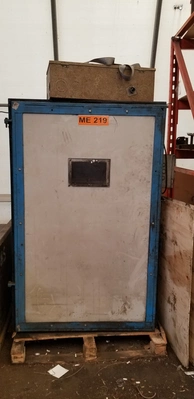

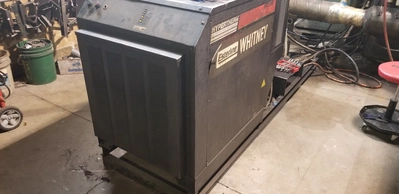

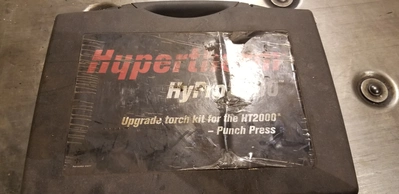

• HT2000 Plasma Cutting System
• GE FANUC SERIES 16-P

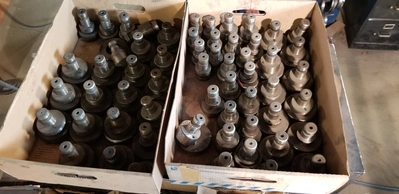

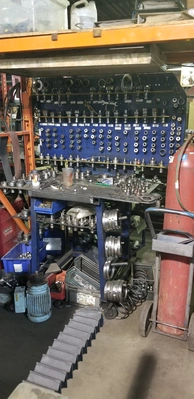

• 7 TOOL CHANGER 2 X CLAMPS FOR MATERIAL
