Used 2012 AMADA EMLK-3610NT | Laser Combo Punches

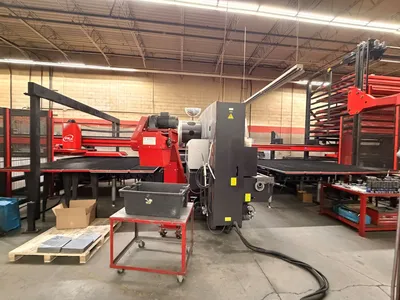

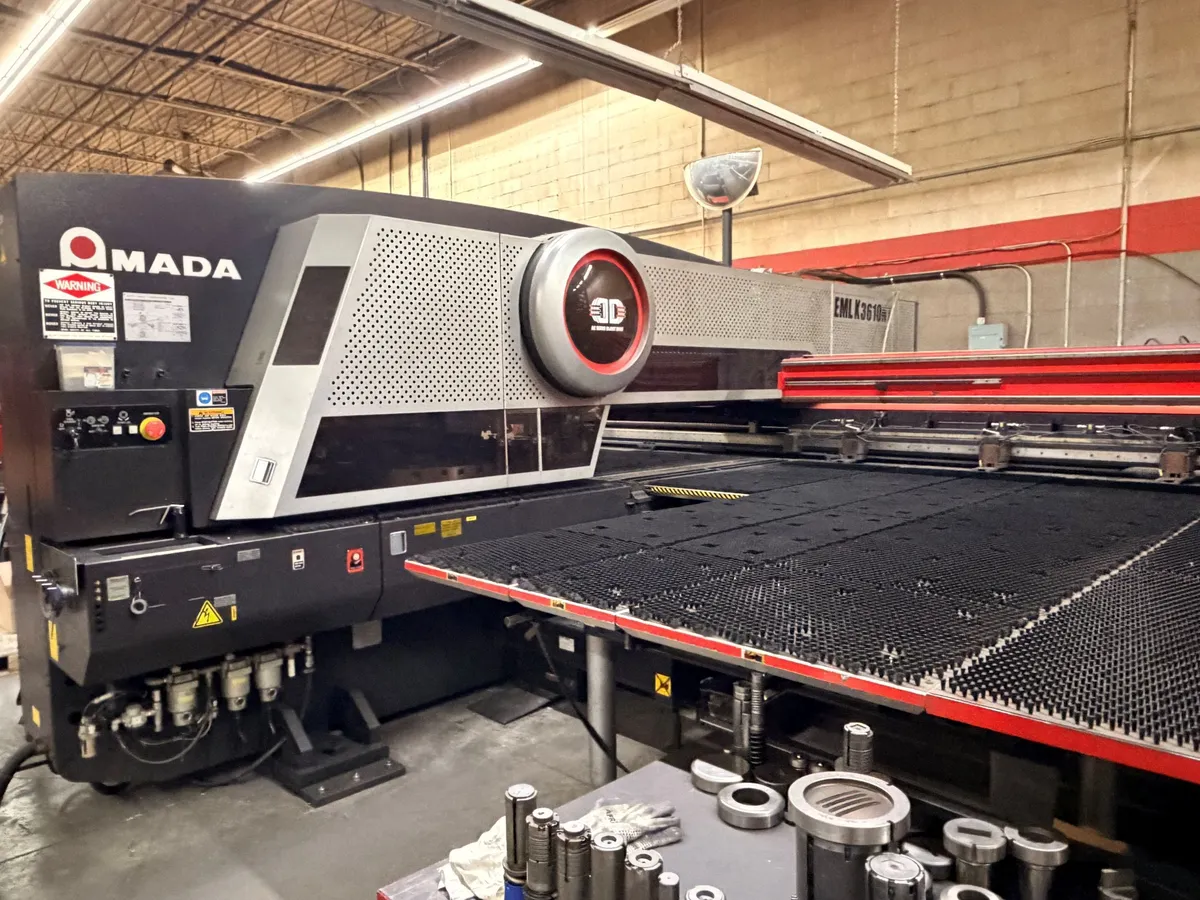

Amada Punch and Laser Combination Machine

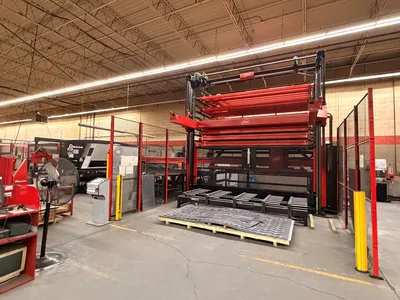

Equipped with Loading and Unloading Tower system
Model: EML-K 3610NT with 4000W laser source capacity
Year: 2012
NC Control AMNC-F / FANUC 160i-LPB
Condition: Machine and Loading & Unloading unit run well independently. Interface motherboard needs replacement and Amada company has given quote about $10K upgrade.
Technical Specification: (Subject to verification)
Worksheet size: 5 X10 ft
Press capacity: 33 Tons
Laser Oscillator AF4000E, Rated power 4000 W
X axis Travel: 3050 mm
Y axis Travel: 1875 mm
Max presse stroke : 37 mm
Max work sheet thickness: 3.2mm
Max. Worksheet size: 2500 x 1525 mm (98.4” x 60”) (Laser-cutting and punching)
Punching accuracy: ±0.1 mm (±0.004”)
Max. worksheet mass: 75 kg (165 lbs)
Max. feed speed, X-axis: 100m/min (328 fpm)
Max. feed speed, YP-axis: 80m/min (262 fpm)
Max. feed speed, YL-axis: 80 m/min (262 fpm)
Turret speed: 30 rpm
Power Supply: 200/220 V (50/60 Hz)
Power laser oscillator: 121 kVA (50/60 Hz)
Weight (Mass): 29 Metric Tons
