Used 2018 BAYKAL APHS 31120 | CNC Press Brakes

Have one to sell?
+1 (905) 667-7550
info@cncproequipment.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Press Brakes
Manufacturer:
BAYKAL
Model:
APHS 31120
Year:
2018
Stock #:
85
Status:
For Sale
Serial #:
25239
Country:
Canada

Description

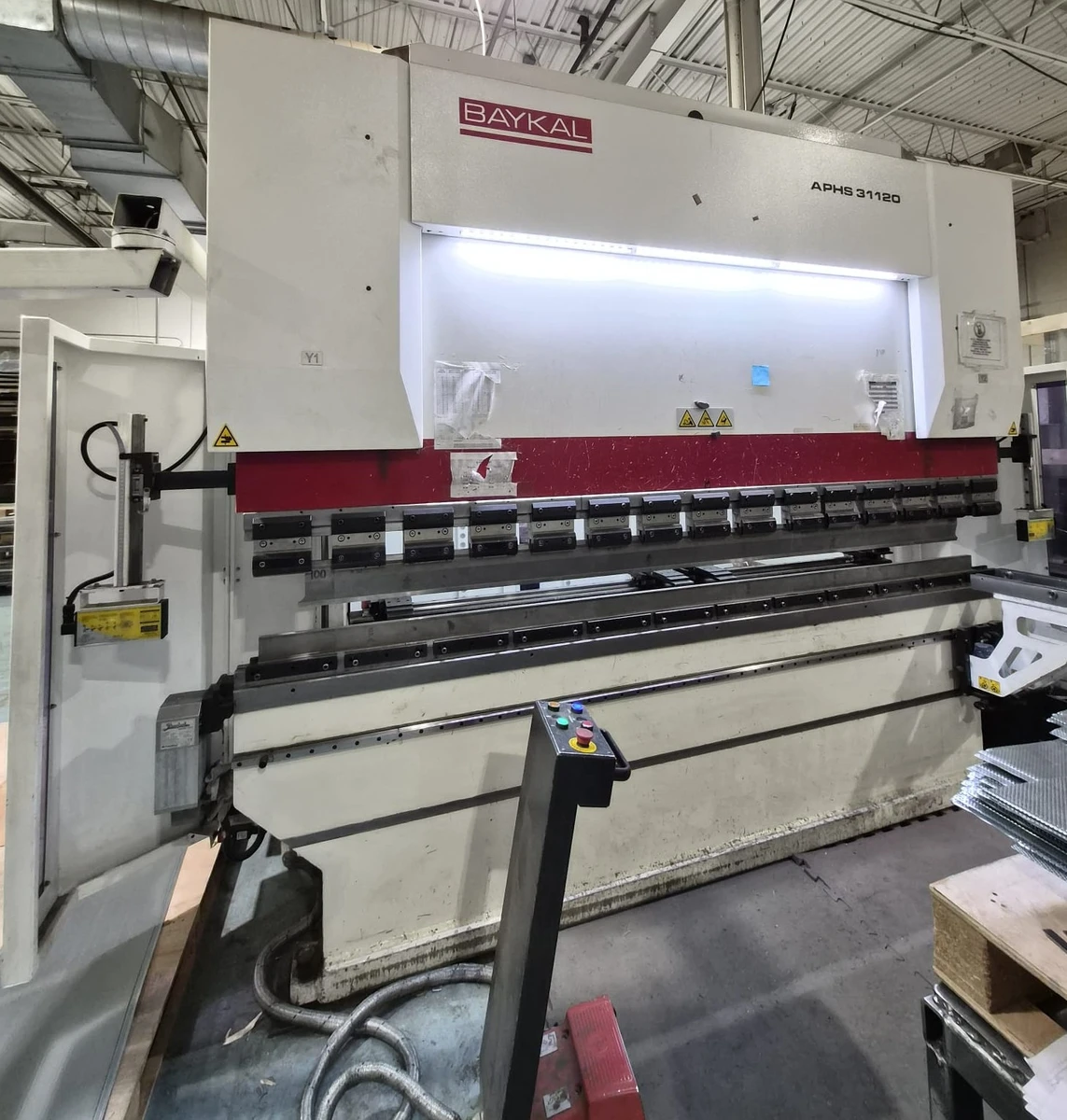

Baykal CNC Hydraulic Press Brake
Model: APHS 31120
Year: April 2018

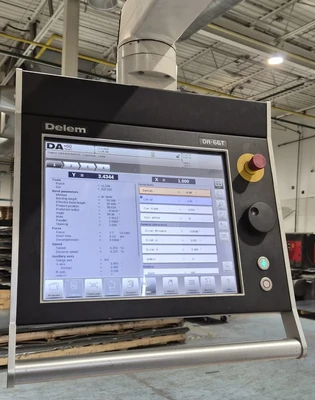

Control: Delem DA 66 T
The Baykal APHS 31120 is a CNC hydraulic press brake designed for machining flat metal materials up to 3100 mm in length. It features a maximum bending capacity of 120 tons.

Tonnage120 T108.862 t
Type'HYD''HYD'
Overall Length120"3 m
Stroke10.236"259.99 mm
ControlCNC (Delem)CNC (Delem)
Dimensions13.123ft x 5.906ft x 9.186ft13.123ft x 5.906ft x 9.186ft
Weight18518 lbs18518 lbs

Baykal CNC Hydraulic Press Brake
Model: APHS 31120
Year: April 2018
Control: Delem DA 66 T
Technical Specification: (Subject to verifications)
Capacity: 120 Tons
Bending length: 3100 mm
Main Voltage: 575V/3 Ph
Nominal Power: 15 kW
System Pressure: 281 bar
Max stopping time: 80 ms
Max Stroke: 260 mm
Top Tool weight: 60Kg
Bottom Tool weight :100kg
Length : 4000mm
Width: 1800 mm
Height: 2800 mm
Machine weight: 8400 Kg
