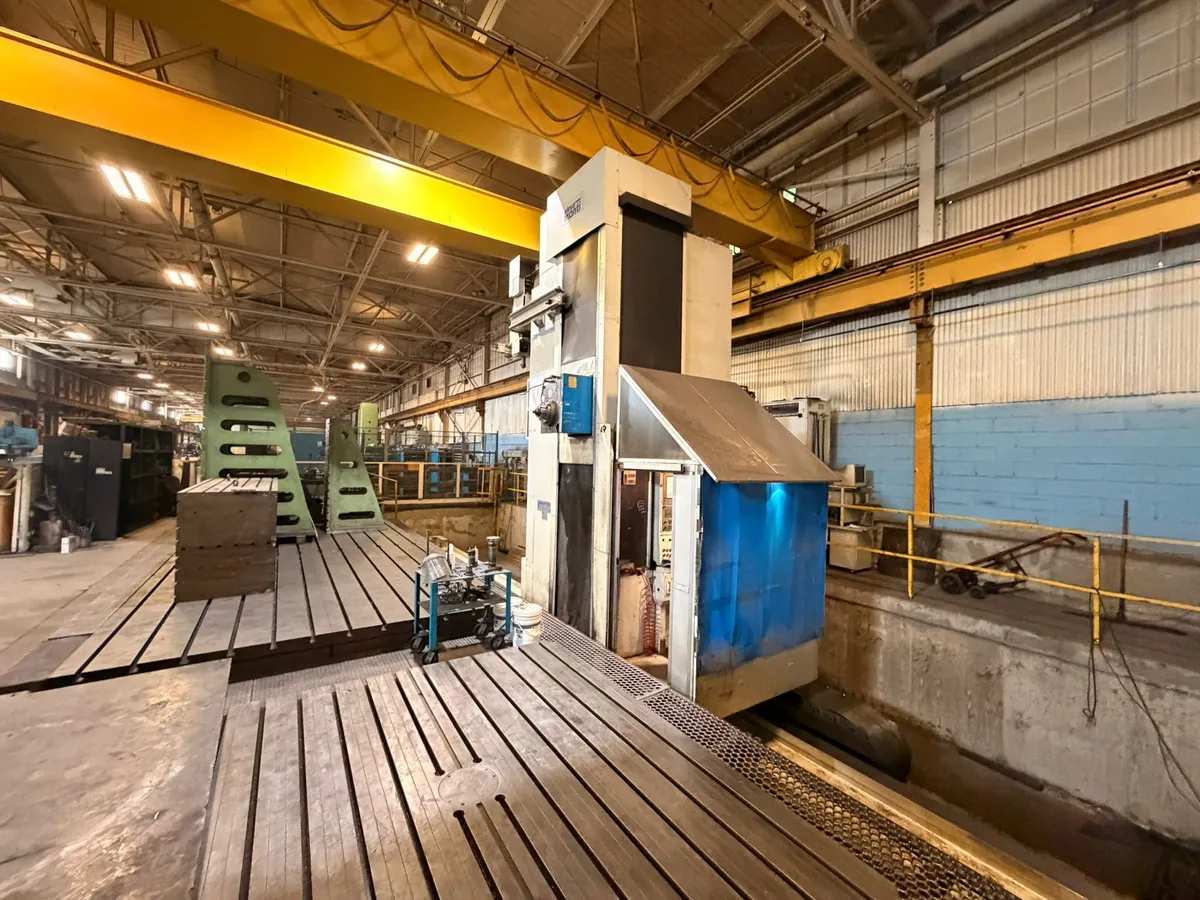

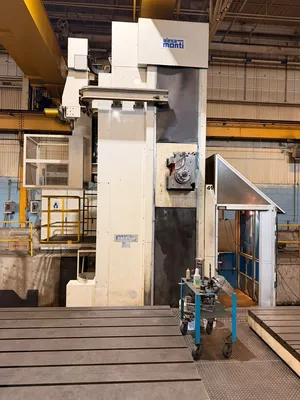

Alesa Monti CNC Horizontal Floor Type Boring Mill, Italy
Model: MMC TG35
Year :2010
Alesa Monti CNC Horizontal Floor Type Boring Mill, Italy
Model: MMC TG35
Year :2010

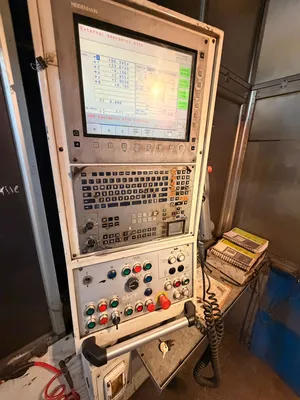

Control: HEIDENHAIN iTNC-530
Technical Details (Subject to verification)
Travels
X-Horizontal travel of Column 12,000 mm
Y-axis, Vertical travel of Headstock 3,500 mm
Spindle travel 500 mm
Ram travel 1,000 mm
Spindle
• Spindle Size : 150 mm
• Spindle Taper : #50
• Spindle RPM : 2,500 RPM
• Power : 37.3 kW
Rotary Table
• Table-W 2,500 mm
• Table-L 3,000 mm
• Rotary table capacity 25,000 Kgs.
Powe supply 400 V, 3Ph, 60Hz
Weight 50000 kgs
Comes with
• ATC: 30 Position Tool Changer
• Universal Right angle Milling Head, Controlled through CNC
• Floor Plates: 2 no. 1800 mm x 1800mm (12’x12’)
• Angle Plates: 2 no. 1.2mx 2.5m x 600mm wide
• Angle Blocks: 2 no. 3m x 1m x 600mm
• Lots of tooling, clamps, and fixtures.
• Chip conveyor
