Used 2001 TOS VARNSDORF WHN 11 | Horizontal Table Type Boring Mills

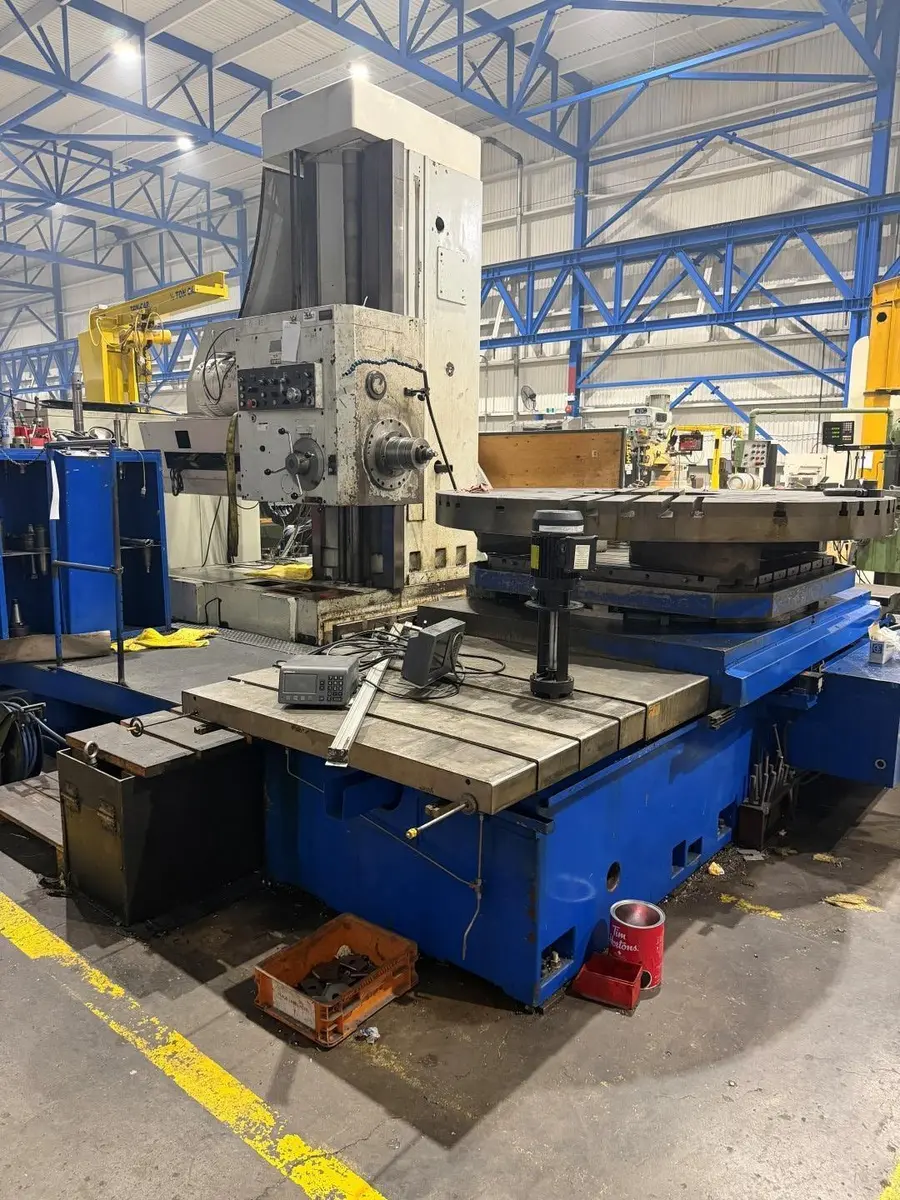

TOS Varnsdorf Horizontal Boring Mill
Model WHN-11
Year 2001

Technical Specifications (Subject to verification)
Spindle Diameter -- 110 mm (4.33")
Spindle Taper -- ISO 50
Spindle Travel (W-Axis) -- 630 mm (24.8")
Spindle Speed Range -- 3.5 – 900 RPM
X-Axis Travel -- 1600 mm (63.0")
Y-Axis Travel -- 1250 mm (49.2")
Z-Axis Travel -- 1000 mm (39.4")
Table Size -- 1250 x 1250 mm (49.2" x 49.2")
Table Load Capacity -- 8000 kg (17,640 lbs)
Spindle to Table Distance -- 1250 mm (49.2")
T-Slot Size -- 22 mm (0.87")
Feed Rate (W/Z) -- 2 – 150 mm/min (0.08 – 5.9 IPM)
Feed Rate (X/Y) -- 4 – 150 mm/min (0.16 – 5.9 IPM)
Feed Rate (High Range) -- 15 – 3000 mm/min (0.6 – 118 IPM)
Rapid Traverse -- 3000 mm/min (118 IPM)
Main Motor -- 34 kW (45.6 HP)
Machine Weight -- 27,000 kg (59,500 lbs)

Equipped With
Rotary Table
Manual Control Panel
Coolant System
